Experience Ultimate Comfort at Home or Work with Powerful Yet Economical Performance
Combines world-class energy efficiency and economy to deliver outstanding performance in a space-saving design. Supporting up to nine indoor units, VRV is a perfectly optimized cooling system for residences and smaller buildings. It’s light weight small-scale build enables easy, low cost installation, while it’s uniquely quiet design ensures soothing comfort and maximum efficiency. Plus, the VRV line offers a wide range of capacities to suit every need.
– First-rate energy efficiency. Save on energy consumption and operational costs with high performance compressor technology.
– Low noise levels. Enjoy a more peaceful home or work environment with quiet operation, thanks to a streamlined fan design.
– Various installation options. Ease installation and minimize effort with a small footprint and a variety of size options.
Big Capacity. Big Choice.

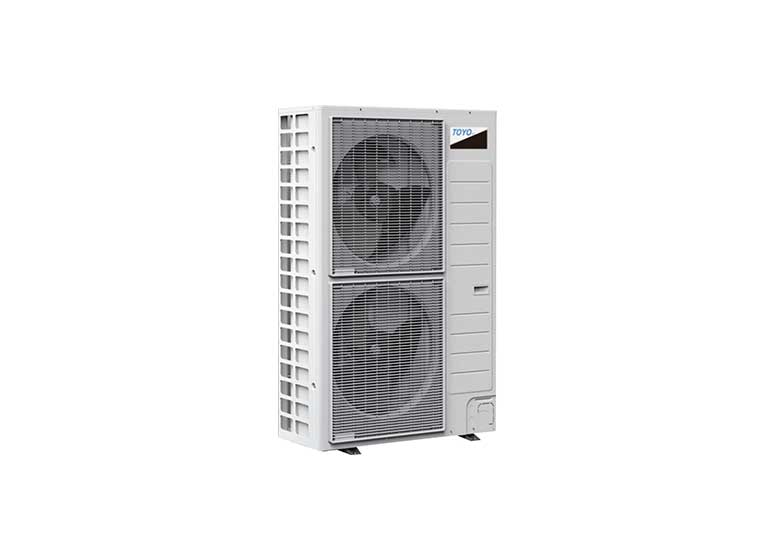

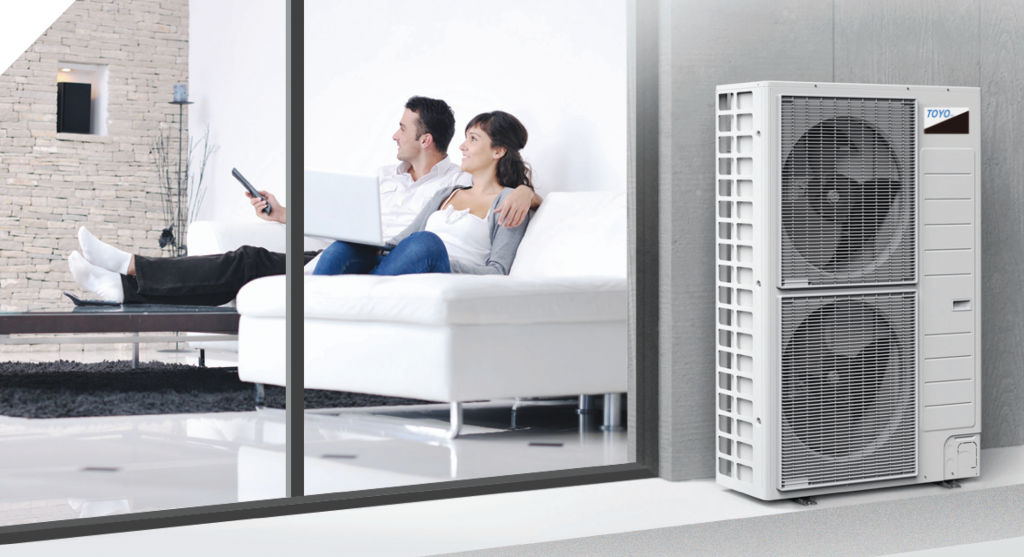

World’s largest capacity and most compact sidedischarge outdoor unit, which also offers a high level of energy efficiency. It’s ideal for homes or business that need plenty of coverage, but only have limited space.
● Best in Class Capacity
Provides more coverage, but takes up less space. It has the largest capacity in its class of 14HP, enabling you to create a small footprint VRV solution. So it’s ideal for installation in places with limited space.

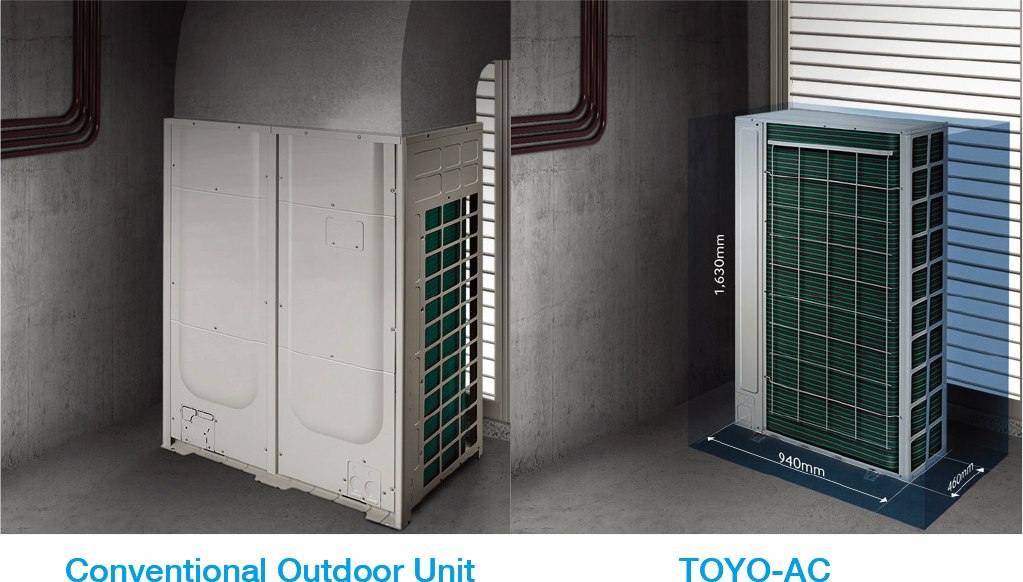

● Compact Design for Extra Flexibility
The most compact air conditioner in its class, making it very easy and economical to install and operate without compromising on performance. It also leaves plenty of extra space that can be used for other purposes.

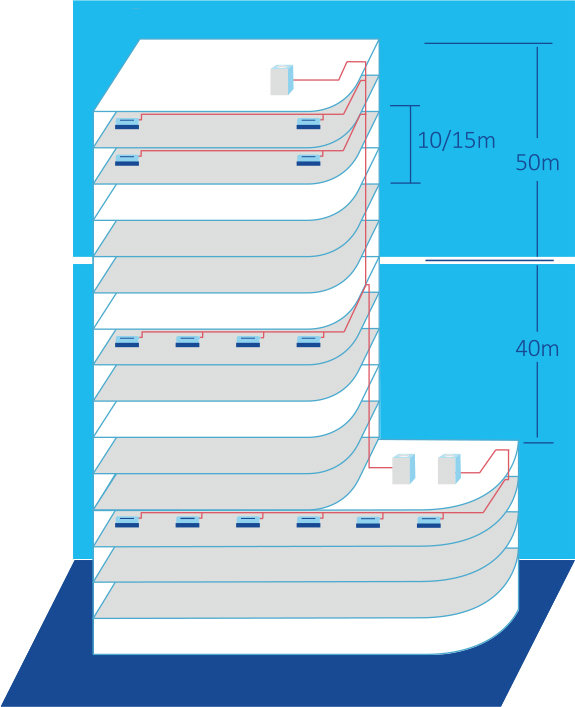

● Long Piping Length
Max. Total piping length — 100/150m
Max. Actual piping length — 60/100m
Max. Level difference between indoor units — 10/15m
Max. Level difference between ODU and IDU units — 40/50m
Max. piping length from 1st indoor branch to the farthest indoor unit — 20m/40m
● Advanced Performance & Energy Efficiency

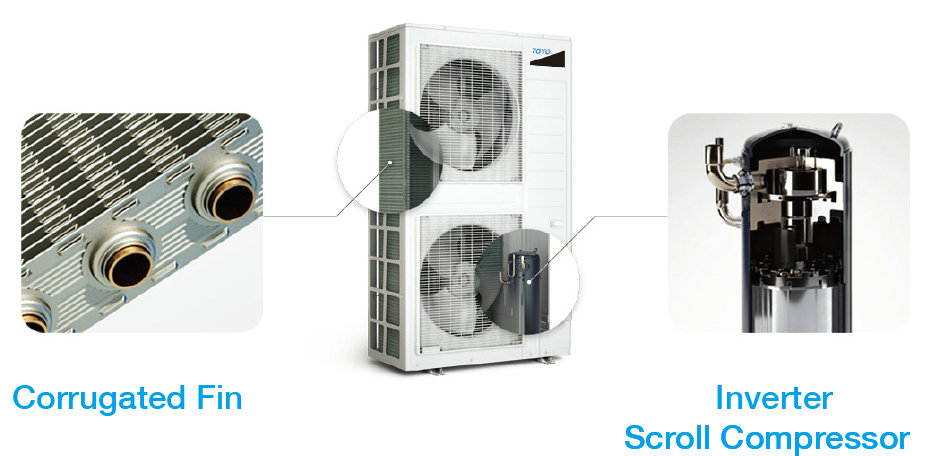

Its advanced technology radically improves performance and reduces wasted energy. It includes an innovative Digital Inverter Compressor, an optimized heat exchanger with corrugated fins and highly efficient fans.
● Improved Reliability in Cold Conditions
Featuring advanced refrigerant control technology. Its flash injection provides improved heating performance at -25°C. And it continues to perform even at lower temperatures, for reliable comfort when it’s freezing.
● Control Your Cooling Anywhere
An optional Wi-Fi Kit lets you remotely control indoor units using a smart phone App. Anytime and anywhere you can turn them on and off, select the operating mode and temperature. and utilize their other functions.
* Available on iPhones and Android devices. A Wi-Fi connection is required.
Drive Down Costs and Energy Use with Unmatched Efficiency
Today’s eco and budget-conscious businesses. Using advanced compressor technology, it offers industry-leading COP, which means exceptional heating and cooling performance at a nominal cost.
● Energy-efficient Compression
A higher cooling and heating COP than that of a conventional model. The result is one of the most efficient air conditioning systems on the market and a smart investment for cost-conscious businesses.
Enjoy Minimal Noise Levels for Maximum Comfort
With its superior design, offers a comforting environment undisturbed by bothersome noise levels typical of standard air conditioning systems. Residents can enjoy a more restful night and employees can increase focus levels with less disturbance.

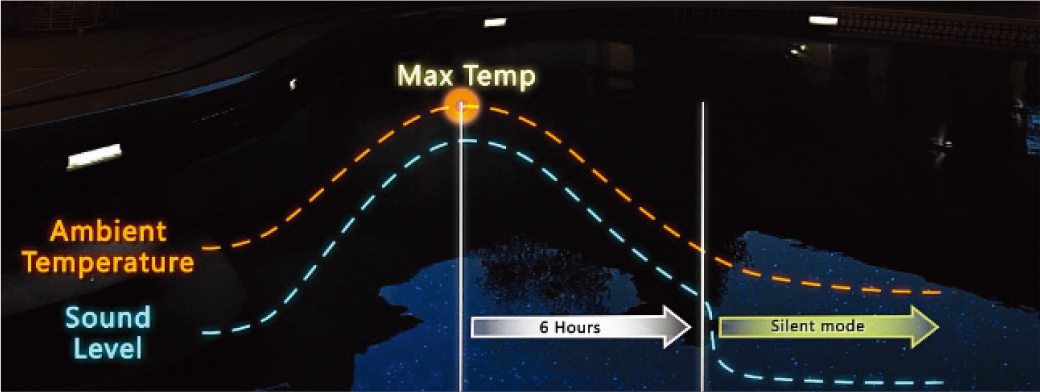

● Ultra-quiet Operation
By producing less noise than conventional models, the imposes fewer distractions on residential and working environments. Its compact, unimposing design and specially shaped fan blades help reduce sound levels up to 5 decibels, creating a more pleasant. Plus, its quiet operation during the night time creates a restful environment with a reduced noise level of 2 – 8 dB.
All DC Inverter
50Hz/60Hz
|
Model |
Outdoor |
|
TVOMH(8)4R1 |
TVOMH(10)4R1 |
TVOMH(12)4R1 |
TVOMH(14)4R1 |
TVOMH(16)4R1 |
|
Capacity |
Cooling |
kW |
8.00 |
10.00 |
12.30 |
14.00 |
16.00 |
|
Heating |
kW |
9.00 |
11.50 |
13.20 |
16.50 |
18.00 |
|
|
Electric Data |
Power Supply |
V~,Hz,Ph |
220~240,50/60,1 |
220~240,50/60,1 |
220~240,50/60,1 |
220~240,50/60,1 |
220~240,50/60,1 |
|
Cooling Power Input |
kW |
2.30 |
3.00 |
3.25 |
3.95 |
4.80 |
|
|
Heating Power Input |
kW |
2.40 |
3.20 |
3.41 |
4.05 |
4.80 |
|
|
Cooling Current |
A |
10.10 |
13.20 |
14.30 |
17.30 |
21.10 |
|
|
Heating Current |
A |
10.50 |
14.00 |
15.00 |
17.80 |
21.10 |
|
|
EER |
|
3.48 |
3.33 |
3.78 |
3.54 |
3.33 |
|
|
COP |
|
3.75 |
3.59 |
3.87 |
4.07 |
3.75 |
|
|
SEER |
|
6.20 |
6.10 |
6.10 |
6.10 |
6.10 |
|
|
SCOP |
|
4.20 |
4.10 |
4.10 |
4.00 |
4.00 |
|
|
Performance |
Air Flow Volume |
m3/h |
4154 |
4154 |
7200 |
7200 |
7200 |
|
Noise Level |
dB(A) |
56 |
56 |
57 |
57 |
57 |
|
|
Piping Limit |
Level Difference Between IDU and ODU |
m |
50 |
50 |
50 |
50 |
50 |
|
Level Difference Between IDU and IDU |
m |
10 |
10 |
15 |
15 |
15 |
|
|
Between the First Brance and the Farthest IDU |
m |
40 |
40 |
40 |
40 |
40 |
|
|
Total Pipe Length |
m |
100 |
100 |
150 |
150 |
150 |
|
|
Max. No. of Indoor Units |
|
Unit |
4 |
5 |
7 |
8 |
9 |
|
Connection Ratio |
|
% |
50~130 |
50~130 |
50~130 |
50~130 |
50~130 |
|
Dimension(WxDxH) |
Net |
mm |
970×395×805 |
970×395×805 |
940×370×1325 |
940x370x1325 |
940x370x1325 |
|
Packing |
mm |
1105×495×895 |
1105×495×895 |
1080x430x1440 |
1080x430x1440 |
1080x430x1440 |
|
|
Weight |
Net |
kg |
66 |
66 |
86 |
86 |
93 |
|
Gross |
kg |
71 |
71 |
91 |
91 |
98 |
|
|
Refrigerant Type |
|
|
R410a |
R410a |
R410a |
R410a |
R410a |
|
Pipe Diameter |
Liquid Side |
mm(inch) |
9.52(3/8) |
9.52(3/8) |
9.52(3/8) |
9.52(3/8) |
9.52(3/8) |
|
Gas Side |
mm(inch) |
15.88(5/8) |
15.88(5/8) |
15.88(5/8) |
15.88(5/8) |
19.05(3/4) |
|
|
Operation Range |
Cooling |
°C |
-15~52 |
-15~52 |
-15~52 |
-15~52 |
-15~52 |
|
Heating |
°C |
-15~27 |
-15~27 |
-15~27 |
-15~27 |
-15~27 |
|
|
Stuffing Quantity |
20/40/40H |
Unit |
44/96/144 |
44/96/144 |
26/54/54 |
26/54/54 |
26/54/54 |
VRV Mini Series 50Hz
|
Model |
Outdoor |
|
TVOMH(22)5R1 |
TVOMH(26)5R1 |
|
Capacity |
Cooling |
kW |
22.40 |
26.00 |
|
Heating |
kW |
24.50 |
28.50 |
|
|
Electric Data |
Power Supply |
V~,Hz,Ph |
380~415,50,3 |
380~415,50,3 |
|
Cooling Power Input |
kW |
7.20 |
8.40 |
|
|
Heating Power Input |
kW |
6.70 |
7.90 |
|
|
Cooling Current |
A |
11.60 |
13.50 |
|
|
Heating Current |
A |
11.00 |
13.00 |
|
|
EER |
|
3.11 |
3.10 |
|
|
COP |
|
3.66 |
3.61 |
|
|
Performance |
Air Flow Volume |
m3/h |
9000 |
9000 |
|
Noise Level |
dB(A) |
60 |
60 |
|
|
Piping Limit |
Vertical Pipe Length |
m |
≤30 |
≤30 |
|
Actual Pipe Length |
m |
45 |
45 |
|
|
Equivalent Pipe Length |
m |
50 |
50 |
|
|
Total Pipe length |
m |
100 |
100 |
|
|
Max. No. of Indoor Units |
|
Unit |
11 |
12 |
|
Connection Ratio |
|
% |
50~130 |
50~130 |
|
Dimension(WxDxH) |
Net |
mm |
1120×400×1510 |
1120×400×1510 |
|
Packing |
mm |
1270×560×1710 |
1270×560×1710 |
|
|
Weight |
Net |
kg |
150 |
150 |
|
Gross |
kg |
170 |
170 |
|
|
Refrigerant Type |
R410a |
R410a |
||
|
Pipe Diameter |
Liquid Side |
mm(inch) |
9.52(3/8) |
9.52(3/8) |
|
Gas Side |
mm(inch) |
22.22(7/8) |
22.22(7/8) |
|
|
Operation Range |
Cooling |
°C |
-10~52 |
-10~52 |
|
Heating |
°C |
-15~24 |
-15~24 |
|
|
Stuffing Quantity |
20/40/40H |
Unit |
17/37/37 |
17/37/37 |
Notes:
1.Cooling Capacity: Indoor temperature 27°C DB/ 19°C WB; Outdoor temperature:35°C DB/ 24°C WB.
2.Cooling Capacity (Tropical): Indoor temperature 27°C DB/19°C WB;Outdoor temperature:46.1°C DB.
3.Heating Capacity: Indoor temperature 20°C DB; Outdoor temperature: 7°C DB/ 6°C WB.
4.Piping Length: Equivalent piping length: 7.5m, level difference: 0m.
5.Anechoic chamber conversion value, measured in test room. During actual operation. These values are normally somewhat higher as a result of ambient conditions.
6.The above designs and specifications are subject to change without prior notice. Final specifications please refer to technical specification provided by sales representative.
* Please leave your message!We will send detail technical info and quotation to you!
